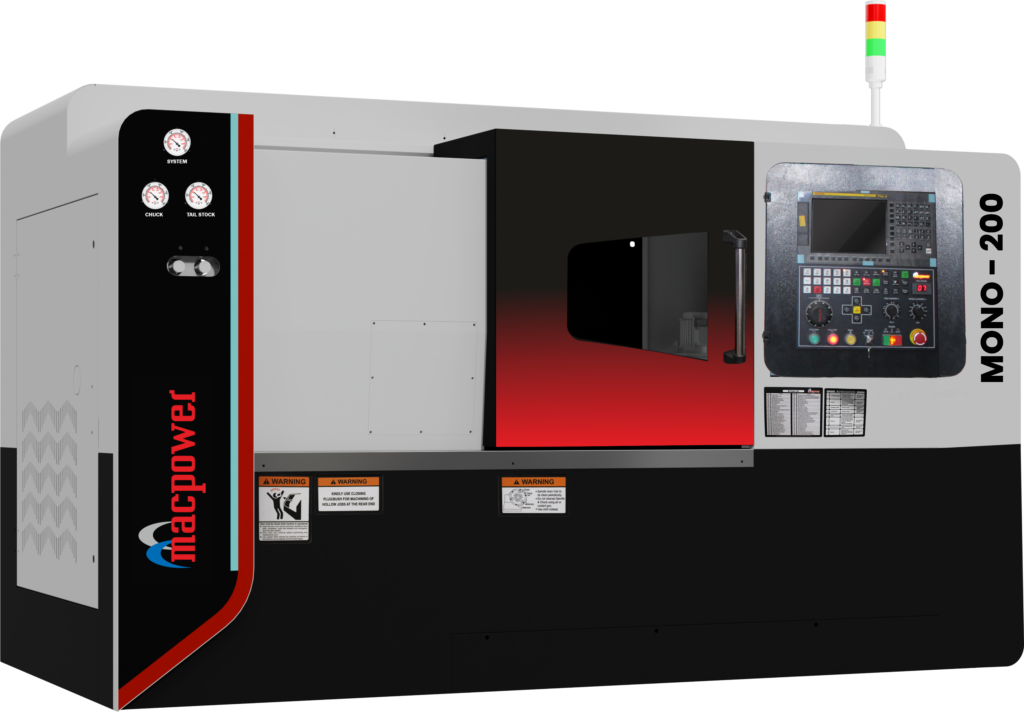

Turning Center
MONO 200
A CNC turning center with balanced turning capacity, useful axis travel and practical spindle capability for general component machining and production.
Turning Center
Mono 200
| SWING OVER CARRIAGE | 350 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 550 MM |
| TRAVEL (X / Z) | 185 / 550 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 200x3 MM |
| SPINDLE POWER (FANUC) | 9 / 12 (P) KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 3900 KG |
Turning Center
Mono 200
The MONO 200 is a CNC turning machine designed for precision machining applications. It offers a swing over carriage of Ø350 mm, a maximum turning diameter of Ø350 mm over the full length, and a swing over bed of Ø500 mm. The machine provides a maximum turning length of 550 mm and a distance between centers of 575 mm. Its slide system includes 185 mm cross travel on the X-axis and 550 mm longitudinal travel on the Z-axis, with rapid feed rates of 24 m/min on both axes.
The main spindle is equipped with an A2-6 spindle nose, a Ø63 mm spindle bore, and a maximum bar capacity of Ø51 mm. It supports a Ø200 mm three-jaw chuck and operates within a speed range of 50 to 3500 rpm, with the full power range available from 1000 to 3000 rpm. The spindle motor is rated at 9 kW for continuous operation and up to 12 kW for a 15-minute rating. The power diagram also indicates a maximum acceleration power of approximately 14.4 kW, with a peak operating power of 12 kW and continuous power of 9 kW.
In terms of size and installation, the MONO 200 has approximate overall dimensions of 2940 × 1870 × 1840 mm and weighs around 3900 kg. The machine can be supplied with either a Fanuc Oi-TF Plus control system or a Siemens 828D control system. Its machining range includes a 550 mm Z-axis stroke and a 185 mm X-axis stroke, while the tool interference diagram indicates a maximum machining diameter of approximately Ø350 mm.
