Turning Center

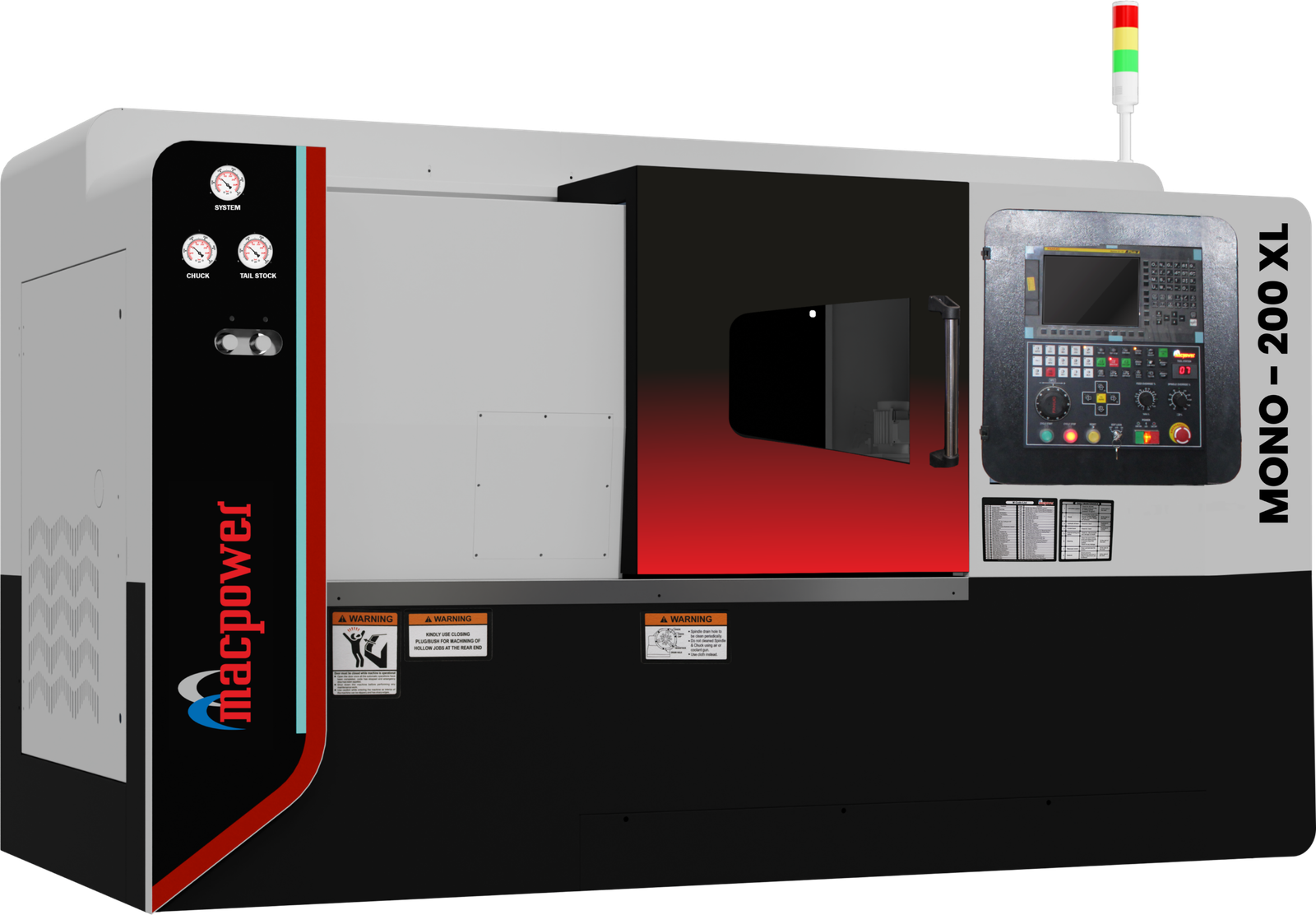

MONO 200 XL
The MONO 200 XL is a CNC turning machine designed for applications that require a longer machining length while maintaining high accuracy and rigidity.
Turning Center
Mono 200 XL
| SWING OVER CARRIAGE | 350 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 700 MM |
| TRAVEL (X / Z) | 185 / 700 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 200x3 MM |
| SPINDLE POWER (FANUC) | 9 / 12 (P) KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 4350 KG |
Turning Center
Mono 200 XL
It provides a swing over carriage of Ø350 mm, a maximum turning diameter of Ø350 mm over the full length, and a swing over bed of Ø500 mm. The machine offers a maximum turning length of 700 mm and a distance between centers of 725 mm, making it suitable for comparatively longer workpieces.
The slide system provides 185 mm of cross travel on the X-axis and 700 mm of longitudinal travel on the Z-axis. Rapid feed rates for both the X and Z axes are 24 m/min, supporting efficient positioning and reduced non-cutting time during machining operations.
The main spindle is equipped with an A2-6 spindle nose and a Ø63 mm spindle bore, with a maximum bar capacity of Ø51 mm. It supports a Ø200 mm three-jaw chuck and operates within a spindle speed range of 50 to 3000 rpm. The full power range is available from 1000 to 3000 rpm. The spindle motor is rated at 9 kW for continuous operation and 12 kW for a 15-minute rating. According to the power diagram, the machine can reach approximately 14.4 kW during acceleration, with a peak power of 12 kW and continuous power of 9 kW.
