Turning Center
MONO 1500
Long-length CNC turning performance engineered for precise, stable machining of larger and extended components.
Turning Center
MONO 1500
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 1500 MM |
| TRAVEL (X / Z) | 185 / 1500 MM |
| RAPID FEED (X / Z) | 20 M/MIN |
| CHUCK SIZE | 200 X 3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | KG |
Turning Center
MONO 1500

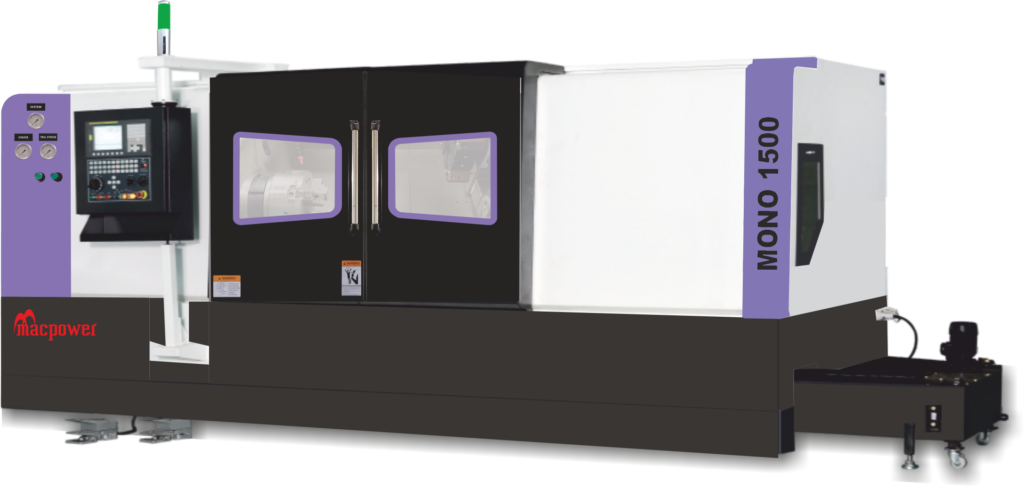

The MONO 1500 is a robust CNC turning machine engineered for precise, dependable machining of larger and longer components. Its extended turning capacity provides a strong, production-ready solution for demanding industrial machining applications.
It offers a 500 mm swing over bed, 350 mm swing over carriage, 350 mm maximum turning diameter, 1500 mm maximum turning length, and 1545 mm distance between centers, providing a substantially extended machining range for long components.
For consistent machining performance, the MONO 1500 features an A2-6 spindle, 63 mm spindle bore, 51 mm maximum bar capacity, 200 mm 3-jaw chuck, and 50–3500 RPM speed range. An 8-station turret with 25 × 25 mm tooling and 40 mm maximum boring bar capacity supports flexible, efficient turning operations.
