Turning Center
MONO 1200
Extended-length CNC turning performance engineered for precise, stable machining of larger and longer components.
Turning Center
MONO 1200
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 1225 MM |
| TRAVEL (X / Z) | 185 / 1225 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 200 X 3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 5400 KG |
Turning Center
MONO 1200

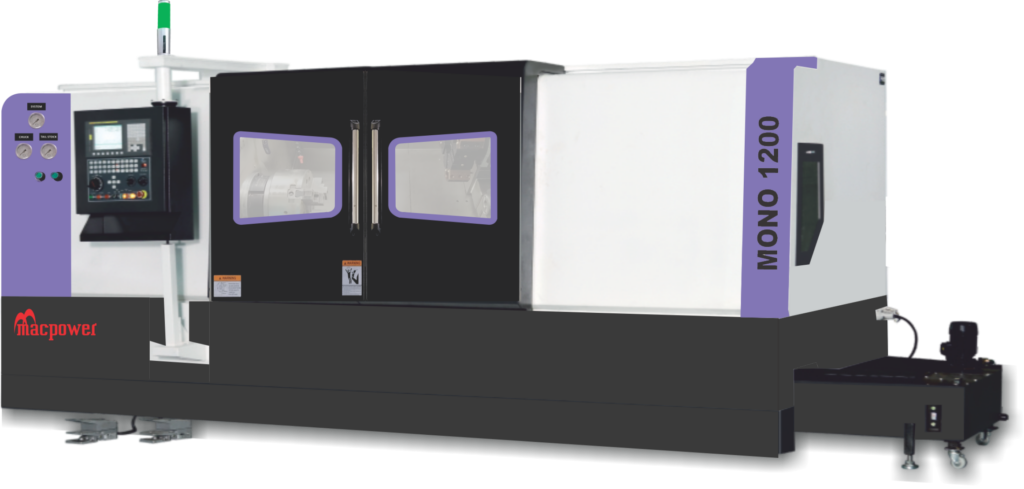

The MONO 1200 is a robust CNC turning machine designed for precise, dependable machining of medium-to-large and longer components. Its extended machining capacity makes it suitable for demanding industrial turning applications.
It offers a 500 mm swing over bed, 350 mm swing over carriage, 350 mm maximum turning diameter, 1225 mm maximum turning length, and 1270 mm distance between centers, providing an extended, practical machining range.
For efficient production, the MONO 1200 features an A2-6 spindle, 63 mm spindle bore, 51 mm maximum bar capacity, 200 mm 3-jaw chuck, and 50–3500 RPM speed range. An 8-station turret with 25 × 25 mm tooling and 40 mm maximum boring bar capacity supports versatile, production-ready turning operations.
