Turning Center
MONO 1000
Large-Series machining performance engineered for precise, stable and productive turning applications.
Turning Center
MONO 1000
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 1025 MM |
| TRAVEL (X / Z) | 185 / 1025 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZESPINDLE POWER (FANUC) | 200 X 3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 5100 KG |
Turning Center
MONO 1000

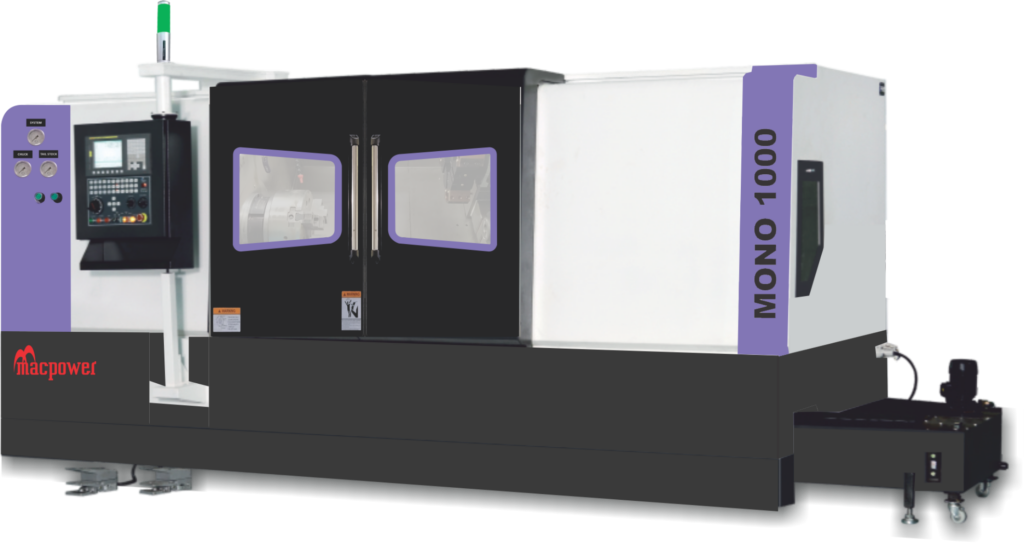

The MONO 1000 is a robust CNC turning machine engineered for precise and dependable machining of medium-to-large components. Its rigid configuration makes it suitable for demanding industrial turning applications
It offers a 500 mm swing over bed, 350 mm swing over carriage, 350 mm maximum turning diameter, 1025 mm maximum turning length, and 1070 mm distance between centers, providing a generous, practical machining range.
For efficient production, the MONO 1000 features an A2-6 spindle, 63 mm spindle bore, 51 mm bar capacity, 200 mm 3-jaw chuck, 50–3500 RPM spindle speed, and an 8-station turret. With 25 × 25 mm tooling and a 40 mm maximum boring bar capacity, it is well equipped for versatile turning operations.
