Turning Center
LX 3000 SUPER
Heavy-duty CNC turning performance engineered for precise, stable machining of long and large-diameter components.
Turning Center
LX 3000 SUPER
| SWING OVER CARRIAGE | 400 MM |
|---|---|
| MAX. TURNING DIA | 630 MM |
| MAX. TURNING LENGTH | 3000 MM |
| TRAVEL (X / Z) | 325 / 3000 MM |
| RAPID FEED (X / Z) | 20 / 10 M/MIN |
| SPINDLE SPEED RANGE | 50 - 1500 RPM |
| SPINDLE POWER (FANUC) | 15 / 18 (P) kW |
| SPINDLE BORE | 110 MM |
| SPINDLE NOSE | A2 - 11 |
| WEIGHT (APPROX) | KG |
Turning Center
LX 3000 SUPER

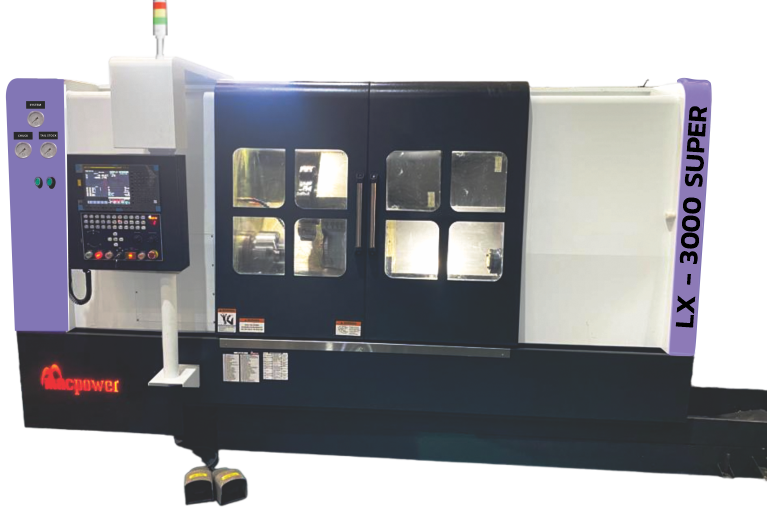

The LX 3000 SUPER is a powerful CNC turning center designed for precise machining of long, heavy and large-diameter components. It offers a 710 mm swing over bed, 400 mm swing over carriage and a maximum turning diameter of 630 mm.
With a maximum turning length of 3000 mm, 325 mm X-axis travel and 3000 mm Z-axis travel, the machine delivers smooth, highly-reliable productivity. Its 50–1500 RPM spindle range, 88 mm bar capacity, 8-station turret and 32 × 32 mm tooling support make it suitable for demanding industrial machining applications.
