Turning Center

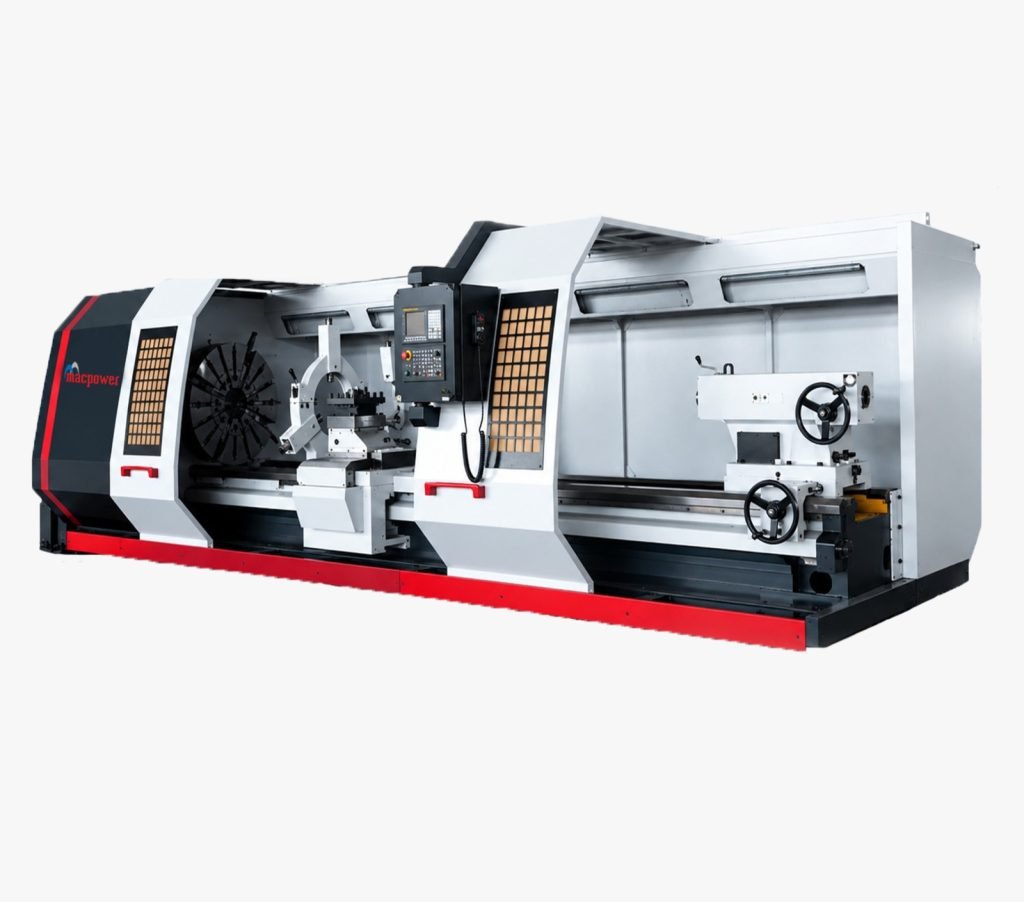

LX 10000
Built for heavy-duty turning with a 10,000 mm maximum turning length and 10,000 kg workpiece capacity.
Its V-belt/All Geared headstock, high spindle torque and robust bed deliver stable, reliable machining for large components.
Turning Center
LX 10000
| DESCRIPTION | UNIT | LX 10000 |
|---|---|---|
| Height of Centre | mm | 600 |
| Width of Bed | mm | 1450 |
| Max. Workpiece Weight (WO Steady Rest) | kg | 10000 |
| Headstock Driven Type | - | V- Belt/All Geared |
| Headstock Spindle Taper | - | A211/A215/A218 |
| Spindle Main Motor | kW | 100 Kw |
| Spindle Speed | RPM | 3-600 rpm |
| Chuck Size | mm | 1000 X 4 Jaw Manual |
| Chuck Clamping Diameter | mm | 200 - 800 |
| X-Axis Cross Feed Speed | mm/min | Feb-00 |
| Z-Axis Longitudinal Feed Speed | mm/min | Feb-00 |
| X-Axis Rapid Movement | mm/min | 3000 |
| Z-Axis Rapid Movement | mm/min | 3000 |
| Tailstock Quill Movable | - | Manual / Hydraulic |
| Tailstock Quill Travel | mm | 350 |
| Tailstock Quill Taper | mm | Metric-80 |
| Tool Holder Size | mm | 40 X 40 |
| Controller System | - | Siemens / Fanuc |
| Positional Accuracy | mm | ±0.025 mm Over 400 mm |
| Positional Repeatability | mm | ±0.010 mm Over 400 mm |
| Bed Type | - | - |
| Positional Repeatability | mm | ±0.010 mm Over 400 mm |
| Machine Weight - Std. - Approx | kg | 28000 |
| Machine Dimension (L x W x H) (Approx) | mm | 14500 x 4500 x 3500 (Approx.) |
Turning Center
LX 1000
The LX 1000 is a high-performance CNC turning center engineered for precision machining, heavy-duty cutting, and reliable productivity across a wide range of industrial applications. It features a 710 mm swing over bed, 400 mm swing over carriage, and a maximum turning diameter of 630 mm, with a maximum turning length of 1050 mm, making it suitable for machining medium to large workpieces. The machine offers 325 mm X-axis travel, 1050 mm Z-axis travel, and a rapid traverse rate of 20 m/min, ensuring fast and accurate positioning.
Powered by a Fanuc spindle motor (11/15 kW) or an optional Siemens spindle motor (12/16 kW), the LX 1000 delivers a spindle speed range of 50–2500 RPM with a 90 mm spindle bore and 75 mm maximum bar capacity. The turret is equipped with 8 tool stations and supports a 50 mm maximum boring bar along with 32 × 32 mm cross-sectional tool holders, providing excellent machining flexibility for diverse operations.
The tailstock features a 100 mm quill diameter, 120 mm quill stroke, and MT-5 taper, offering strong support for longer workpieces during machining. Precision is maintained with a positioning accuracy of 0.008 mm and a repeatability of 0.007 mm, ensuring consistent, high-quality results in demanding production environments.
