Turning Center
LX 1000 SUPER
| SWING OVER CARRIAGE | 400 MM |
|---|---|
| MAX. TURNING DIA | 630 MM |
| MAX. TURNING LENGTH | 1025 MM |
| TRAVEL (X / Z) | 325 / 1025 MM |
| RAPID FEED (X / Z) | 20 M/MIN |
| SPINDLE SPEED RANGE | 50 - 1500 RPM |
| SPINDLE POWER (FANUC) | 15 / 18 (P) KW |
| SPINDLE BORE | 110 MM |
| SPINDLE NOSE | A2 - 11 |
| WEIGHT (APPROX) | 6900 KG |
Turning Center
LX 1000 SUPER

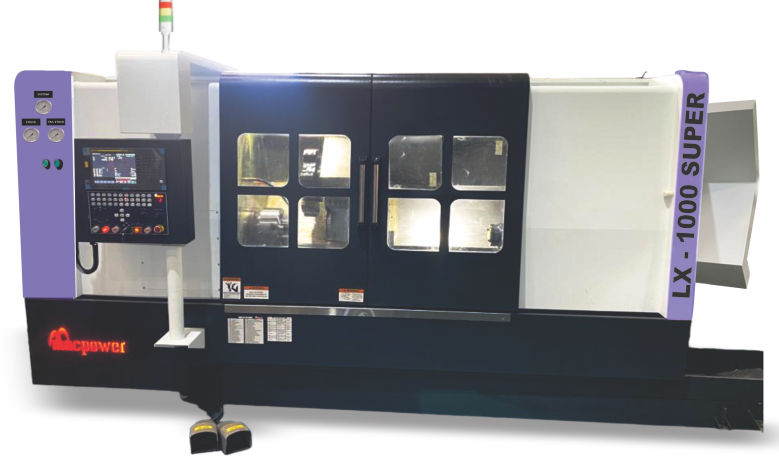

The LX 1000 SUPER is a robust CNC turning center engineered for precision machining, heavy-duty cutting, and high-volume production. Designed with a 710 mm swing over bed, 400 mm swing over carriage, and a maximum turning diameter of 630 mm, it accommodates a wide range of medium to large workpieces. With a maximum turning length of 1025 mm, 325 mm X-axis travel, 1025 mm Z-axis travel, and a rapid traverse rate of 20 m/min, the machine delivers fast, accurate, and efficient machining performance.
The machine is powered by either a 15/18 kW Fanuc or 15/18.5 kW Siemens spindle motor, offering a spindle speed range of 50–1500 RPM for excellent torque and cutting capability. It features a 110 mm spindle bore, A2-11 spindle nose, and 88 mm maximum bar capacity, making it suitable for machining larger components. The 8-station turret supports 50 mm boring bars and 32 × 32 mm tool holders, while the MT-5 tailstock with a 100 mm quill diameter and 120 mm stroke provides stable support for long and heavy workpieces.
Built for consistent accuracy and long-term reliability, the LX 1000 SUPER achieves 0.008 mm positioning accuracy and 0.007 mm repeatability, ensuring superior dimensional precision throughout production. Weighing approximately 6,900 kg, the machine offers exceptional rigidity to minimize vibration during demanding machining operations. It is available with Fanuc 0i TF Plus or Siemens 828D CNC controls, and its integrated tool interference, machining range, and power diagrams demonstrate optimized machining capability, productivity, and dependable performance across a broad range of industrial applications.
